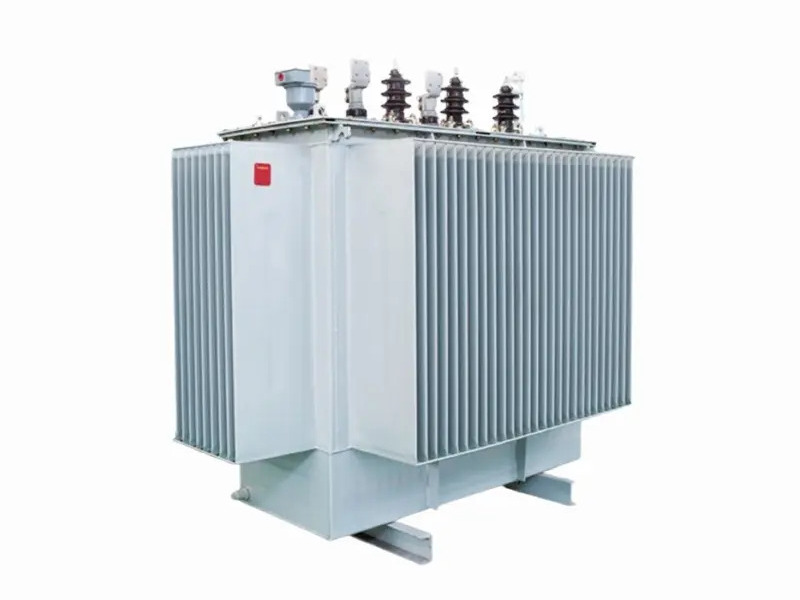

10kV Oil-Immersed Transformer
Energy-efficient 10kV-class oil-immersed distribution transformer for commercial distribution, residential communities, rural grids, and industrial factories.
Quick Specifications
Power Rating
30-31500 kVA
Voltage Class
10kV / 0.4kV, 11kV / 0.433kV on request
Frequency
50/60 Hz
Application
Commercial / Residential / Rural Grid / Industrial
Product Overview
This series of oil-immersed transformers breaks through the traditional planar structure and adopts a three-phase symmetrical three-dimensional structure.
The magnetic circuits of the three-phase iron cores are completely symmetrical, which greatly reduces magnetic resistance and significantly lowers exciting current and no-load loss.
It is an energy-efficient transformer that uses traditional materials while achieving lower operating noise and a more compact overall structure.
The design delivers strong performance in energy conservation, consumption reduction, material saving, and environmental protection.
Application Scenarios
- Commercial power distribution
- Residential community power supply
- Rural power grid distribution
- Industrial factory power supply
Applicable Standards
- GB 1094-2013 Power Transformer
- GB/T 6451-2015 Technical Parameters and Requirements for Oil-Immersed Power Transformers
- IEC 60076 Power Transformers
Normal Service Conditions
- Installation altitude below 1000 meters.
- Highest ambient temperature: +40 degrees Celsius.
- Highest daily average temperature: +20 degrees Celsius.
- Lowest outdoor temperature: -25 degrees Celsius.
Performance Parameters
The tables below show representative S13 and SH15 technical data for common 30-1600 kVA models. Higher-capacity configurations are available on request.
S13 Series Technical Parameter Table
| Rated Capacity (kVA) | Voltage Group (HV / LV) | Vector Group | No-Load Loss (W) | Load Loss (W) | No-Load Current (%) | Impedance Voltage (%) | Boundary Dimensions (L x W x H, mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 30 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 80 | 630 / 600 | 0.30 | 4 | 800 x 620 x 1100 | 300 |
| 50 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 100 | 910 / 870 | 0.24 | 4 | 840 x 640 x 1150 | 380 |
| 80 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 130 | 1090 / 1040 | 0.22 | 4 | 980 x 670 x 1210 | 480 |
| 100 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 150 | 1310 / 1250 | 0.21 | 4 | 1040 x 700 x 1230 | 540 |
| 125 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 170 | 1580 / 1500 | 0.20 | 4 | 910 x 800 x 1260 | 590 |
| 160 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 200 | 1890 / 1800 | 0.19 | 4 | 1110 x 970 x 1290 | 720 |
| 200 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 240 | 2310 / 2200 | 0.18 | 4 | 1180 x 1020 x 1310 | 860 |
| 250 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 290 | 2730 / 2600 | 0.17 | 4 | 1190 x 1030 x 1300 | 970 |
| 315 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 340 | 3200 / 3050 | 0.16 | 4 | 1290 x 1120 x 1360 | 1170 |
| 400 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 410 | 3830 / 3650 | 0.16 | 4 | 1280 x 1110 x 1410 | 1320 |
| 500 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 480 | 4520 / 4300 | 0.16 | 4 | 1400 x 1210 x 1420 | 1490 |
| 630 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 570 | 6200 | 0.15 | 4.5 | 1440 x 1250 x 1490 | 1910 |
| 800 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 700 | 7500 | 0.15 | 4.5 | 1540 x 1340 x 1520 | 2160 |
| 1000 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 830 | 10300 | 0.14 | 4.5 | 1600 x 1420 x 1630 | 2550 |
| 1250 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 970 | 12000 | 0.13 | 4.5 | 1680 x 1460 x 1730 | 3160 |
| 1600 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 1170 | 14500 | 0.12 | 4.5 | 1780 x 1540 x 1810 | 3850 |
SH15 Series Technical Parameter Table
| Rated Capacity (kVA) | Voltage Group (HV / LV) | Vector Group | No-Load Loss (W) | Load Loss (W) | No-Load Current (%) | Impedance Voltage (%) | Boundary Dimensions (L x W x H, mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 30 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 33 | 600 | 1.5 | 4 | 920 x 850 x 830 | 410 |
| 50 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 43 | 870 | 1.2 | 4 | 1040 x 780 x 870 | 520 |
| 63 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 50 | 1040 | 1.1 | 4 | 1010 x 810 x 880 | 570 |
| 80 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 60 | 1250 | 1.0 | 4 | 1060 x 830 x 910 | 640 |
| 100 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 75 | 1500 | 0.9 | 4 | 1140 x 830 x 860 | 750 |
| 125 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 85 | 1800 | 0.8 | 4 | 1110 x 880 x 950 | 830 |
| 160 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 100 | 2200 | 0.6 | 4 | 1130 x 880 x 1000 | 940 |
| 200 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 120 | 2600 | 0.6 | 4 | 1240 x 900 x 1020 | 1090 |
| 250 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 140 | 3050 | 0.6 | 4 | 1290 x 900 x 1070 | 1250 |
| 315 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 170 | 3650 | 0.5 | 4 | 1380 x 840 x 1110 | 1470 |
| 400 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 200 | 4300 | 0.5 | 4 | 1420 x 920 x 1250 | 1710 |
| 500 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 240 | 5150 | 0.5 | 4 | 1360 x 1040 x 1180 | 1990 |
| 630 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 320 | 6200 | 0.3 | 4.5 | 1530 x 1120 x 1310 | 2390 |
| 800 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 380 | 7500 | 0.3 | 4.5 | 1880 x 1210 x 1360 | 2760 |
| 1000 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 450 | 10300 | 0.3 | 4.5 | 2040 x 1520 x 1360 | 3240 |
| 1250 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 530 | 12000 | 0.2 | 4.5 | 2140 x 1520 x 1430 | 3820 |
| 1600 | 11 / 10.5 / 10 / 6 kV / 0.4 kV | Dyn11 / Yyn0 | 630 | 14500 | 0.2 | 4.5 | 2260 x 1540 x 1500 | 4620 |
FAQ
Of course. This product covers the voltage class commonly used in Asian markets. Its highest voltage class is 12 kV, so 11 kV is fully within the supported range. We can absolutely manufacture an 11 kV / 0.433 kV version for your project.
Yes. We can customize rated capacity, HV/LV voltage combination, vector group, tap changer arrangement, impedance voltage, enclosure finish, and accessory configuration to match local utility or EPC requirements.

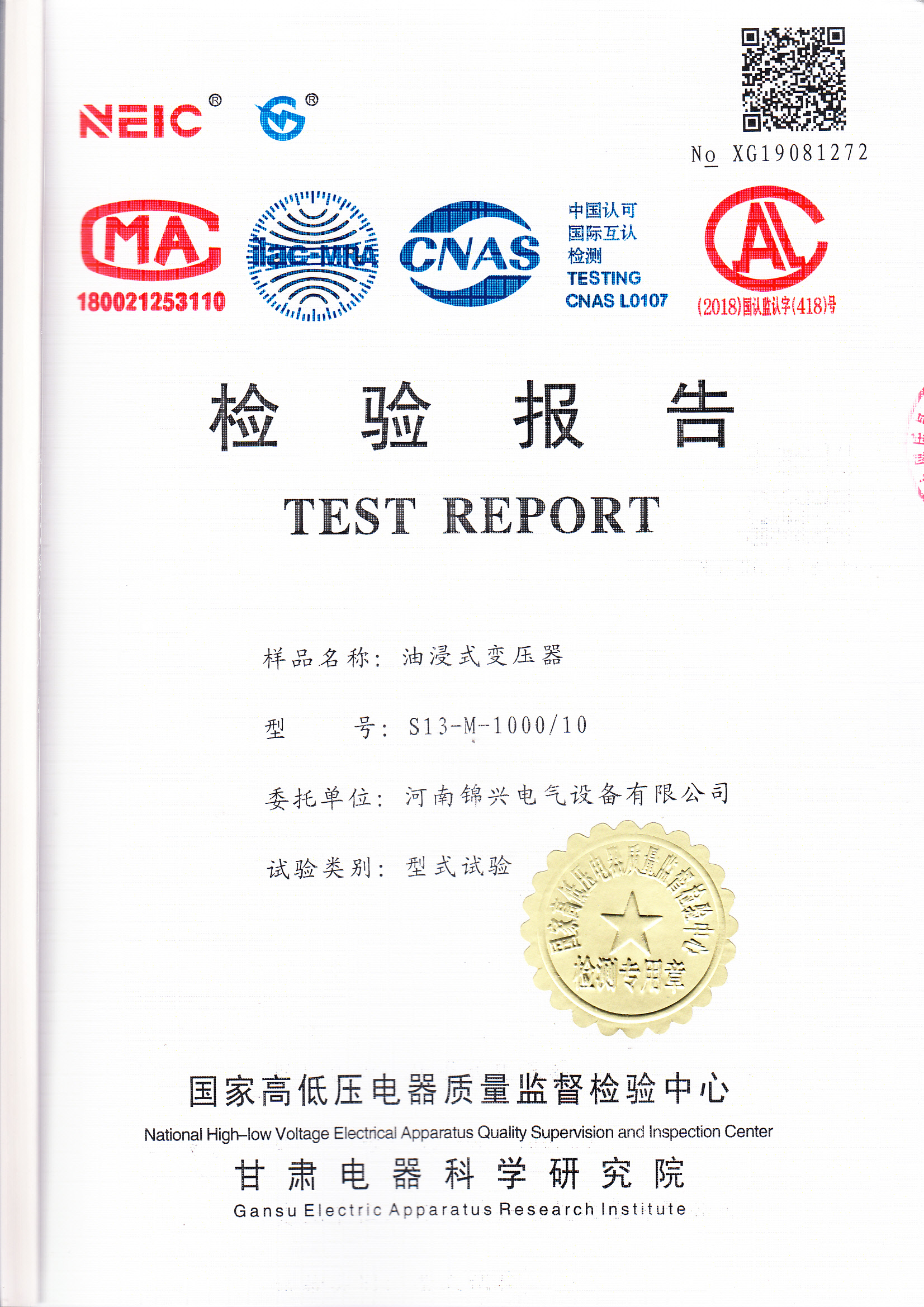

We can provide technical datasheets, outline drawings, nameplate details, routine test reports, certificate files, and commercial quotations to support engineering review and procurement.
It is widely used in commercial distribution systems, residential communities, rural power networks, and industrial factories where reliable medium-voltage to low-voltage power conversion is required.
