GGD

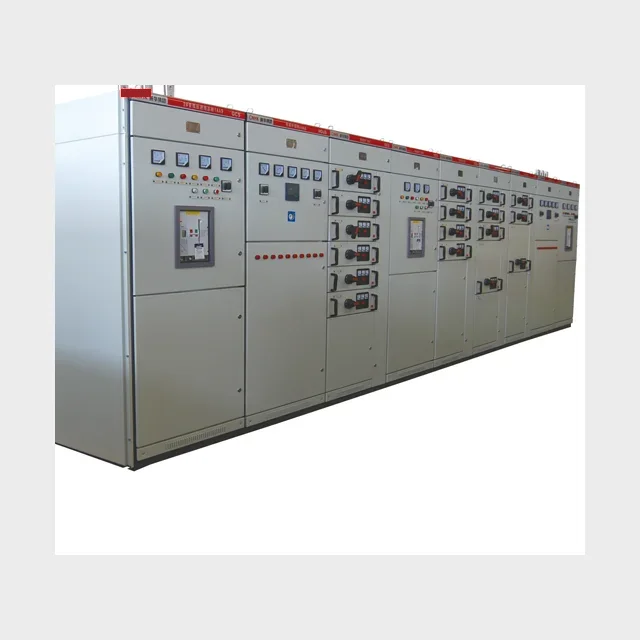

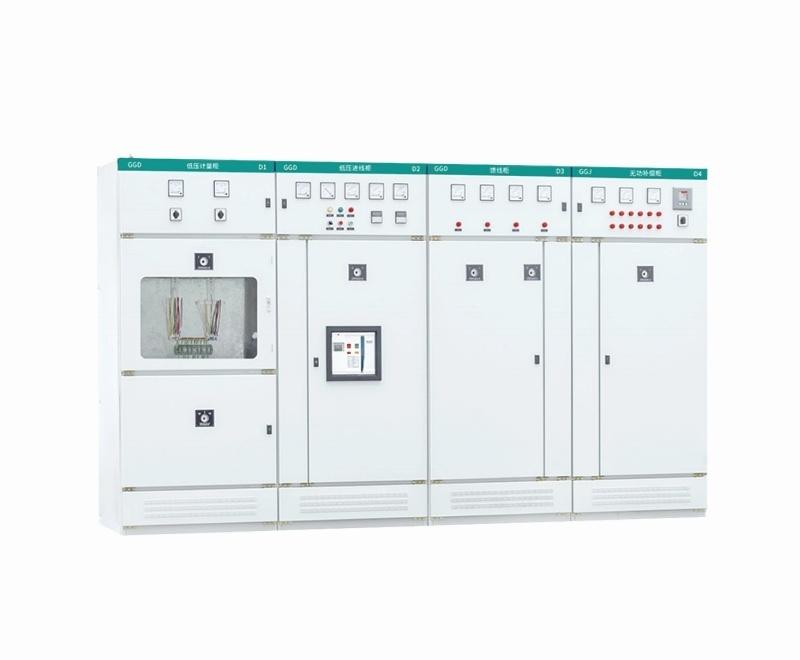

GGD type AC low-voltage power distribution cabinet with modular fixed-panel construction for reliable indoor distribution systems.
Quick Specifications
Application
Low voltage AC power distribution
Cabinet Structure
Fixed universal cabinet
Service Environment
Indoor, altitude up to 2000 m
Standards
IEC 439 / GB 7251
Product Overview
The cabinet body of the GGD type AC low-voltage power distribution cabinet adopts the form of a universal cabinet. The framework is assembled by local welding of 8MF cold-formed steel sections. The framework parts and special supporting parts are supplied by the designated production factory of the steel sections to ensure the precision and quality of the cabinet body.
The components and parts of the universal cabinet are designed according to the modular principle, and there are installation holes of 20 modules. The high universal coefficient enables the factory to achieve pre-production, which not only shortens the production and manufacturing cycle but also improves work efficiency.
Enforce Standards
- IEC 439: Low-voltage switchgear and control equipment
- GB 7251: Low-voltage switchgear
Normal Service Condition
- The ambient air temperature shall not be higher than +40 degrees Celsius and not lower than -5 degrees Celsius, and the average temperature within 24 hours shall not be higher than +35 degrees Celsius. When these limits are exceeded, the capacity shall be derated for operation according to the actual situation.
- It is for indoor use, and the altitude of the installation location shall not exceed 2000 meters.
- The relative humidity of the ambient air shall not exceed 50% when the maximum temperature is +40 degrees Celsius. At lower temperatures, a higher relative humidity is allowed. For example, it is 90% at +20 degrees Celsius. The influence of occasional condensation caused by temperature changes should be taken into account.
- When the device is installed, the inclination from the vertical plane shall not exceed 5 degrees, and the entire group of cabinet rows shall be relatively flat.
- The device shall be installed in a place without severe vibration and impact, and where the electrical components will not be subject to undue corrosion.
Performance Parameter
| Product Code | A | B | C | D |
|---|---|---|---|---|
| GGD06 | 600 | 600 | 450 | 556 |
| GGD06A | 600 | 800 | 450 | 756 |
| GGD008 | 800 | 600 | 650 | 556 |
| GGD08A | 800 | 800 | 650 | 756 |
| GGD10 | 1000 | 600 | 850 | 556 |
| GGD10A | 1000 | 800 | 850 | 756 |
| GGD12 | 1200 | 600 | 1050 | 556 |
| GGD12A | 1200 | 800 | 1050 | 756 |
Back to Low Voltage Switchgear or contact us for datasheets and quotations.
