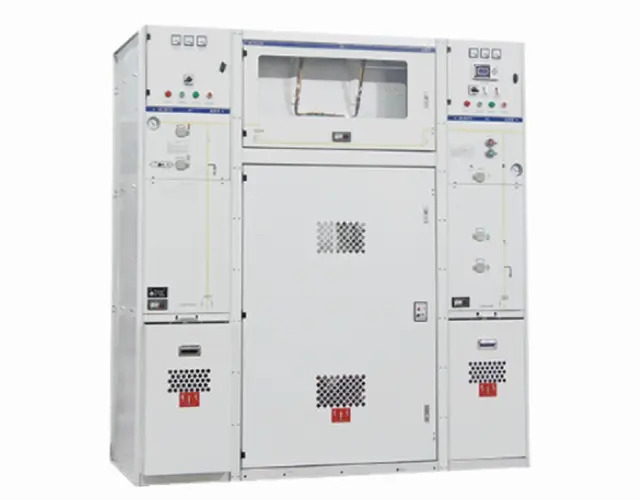

HXGN-12/HXGN-24/HXGN-40.5
HXGN series incoming unit for ring-network and distribution-room feeder access.
Quick Specifications
Rated Voltage
12kV / 24kV / 40.5kV
Function
Incoming feeder
Protection
Relay protection ready
Application
Utility / Industrial
Product Overview
Our company can produce products with voltage classes ranging from 1kV to 40.5kV and below. The product is a complete set of power distribution devices composed of a high-voltage circuit breaker, load switch, contactor, high-voltage fuse, isolation switch, ground switch, transformer and station transformer, as well as control, measurement, protection, regulation devices, internal connectors, auxiliary shell and support parts.
The cabinet structure is assembled by bending and welding steel plates, and the protection level is IP2X. The upper part of the cabinet is the busbar room, and the instrument room is located in front of the busbar room and is separated by steel plates. The middle part of the cabinet is a switch room, and an insulating partition is arranged between the switch and other components.
Enforce Standards
- IEC 62271 High Voltage Switchgear and Control Equipment
- GB/T 11022 Standard Common Technical Requirements for High Voltage Switchgear and Control Equipment
Normal Service Condition
- Ambient air temperature: -15 degrees Celsius to +40 degrees Celsius.
- Altitude: 1000 meters and below.
- Relative humidity: the daily average relative humidity is not more than 95%, and the monthly average relative humidity is not more than 90%.
- Seismic intensity: not exceeding 8 degrees.
- Places without fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.
Performance Parameter
| Item | Unit | Parameters |
|---|---|---|
| Rated Voltage | kV | 12 |
| Rated Frequency | Hz | 50 |
| Rated Current of Main Busbar / Max Rated Current of Fuse | A | 630 / 125 |
| Rated Short-Time Withstand Current of Main Circuit and Earth Circuit | kA / s | 20 / 3 |
| Rated Peak Withstand Current of Main Circuit and Earth Circuit | kA | 50 |
| Rated Short-Circuit Making Current of Main Circuit and Earth Circuit | kA | 50 |
| The Opening Times of the Load Switch with Full Capacity | times | 100 |
| Fuse Breaking Current | kA | 40 |
| Rated Closed Loop Breaking Current | A | 630 |
| Rated Transfer Current | A | 1600 |
| Mechanical Life | times | 2000 |
| 1min Power Frequency Withstand Voltage (Peak Value) Between Phases, Phase and Earth / Phase and Isolation Fracture | kV | 42 / 48 |
| Lightning Impulse Withstand Voltage (Peak Value) Between Phases, Phase and Earth / Phase and Isolation Fracture | kV | 75 / 85 |
| Secondary Loop 1min Power Frequency Withstand Voltage | kV | 2 |
| Protection Level | IP3X |
