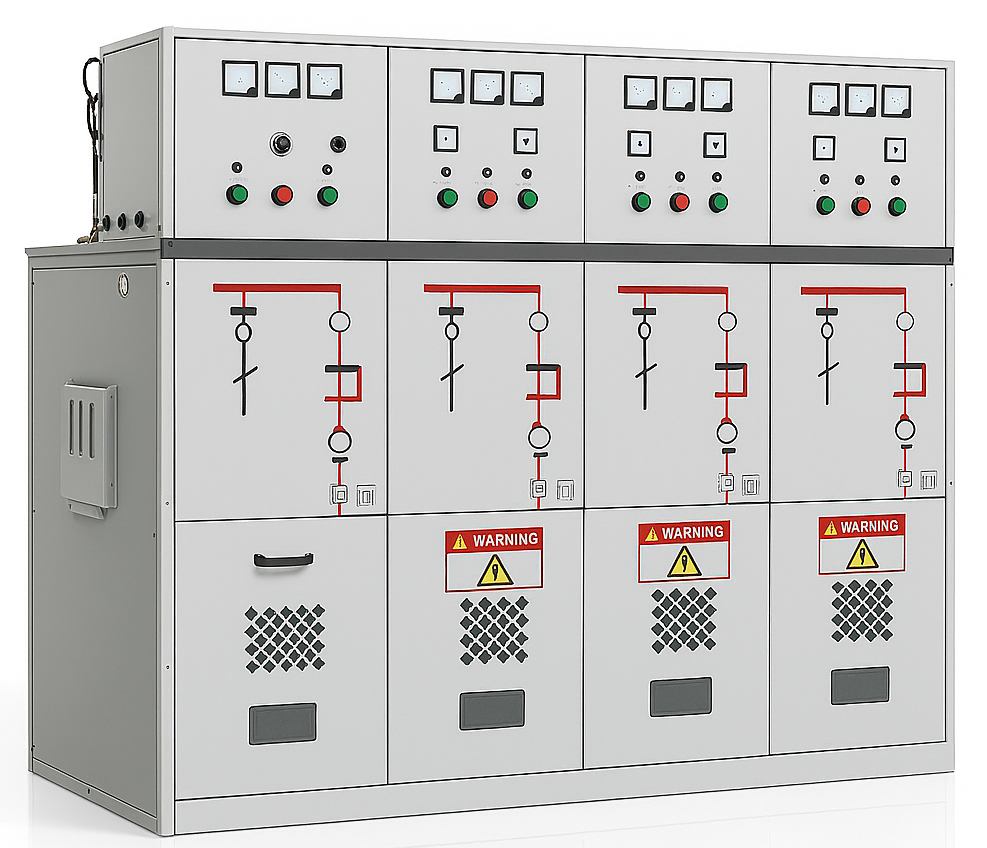

12kV Ring Network Cabinet
Start with the ring-in, ring-out and transformer-feeder functions. The required protection duty determines whether each functional unit needs a switch, fuse combination or circuit breaker.
Product Configuration
Construction / function
12kV ring-network distribution cabinet
Listed voltage class
12kV class
Typical application
Urban distribution, substations, feeder switching
Final rating
Confirmed in the project data sheet and quotation
Parameters for Technical Review
The listed product family is the starting point. Confirm the following items in the offered data sheet; ratings from another model or a sample report are not interchangeable.
| Item | What to confirm |
|---|---|
| Functional units | Provide the circuit diagram and number of ring, transformer and metering units. |
| Electrical duty | Confirm rated voltage, current, fault duty and insulation level. |
| Protection | Specify fuse or relay/breaker protection and earthing/interlock requirements. |
| Cable interface | Confirm cable sizes, connector type, entry direction and service clearances. |
Documents and Their Scope
Request the exact cabinet model and applicable report. A 12kV label alone does not define insulation medium, current or fault-interruption capability.
Ask for the proposed model, rated data sheet, outline drawing, applicable test records and a written list of quotation inclusions. Review available company and product documents.
Request a Quote for 12kV Ring Network Cabinet
Share your voltage, capacity, destination country, and document requirements. We will follow up with model selection, technical documents, and quotation support.
- voltage and capacity
- destination country
- certificates or drawings
Procurement Notes
For quotation, send voltage class, capacity or feeder requirements, single-line diagram if available, target standard, destination market, and any required drawings or certificates.
Request QuotationManufacturing Support
- Model selection and technical document support
- Project-based drawings and quotation coordination
- Certificates, reports, and factory materials on request
- Export communication through email or WhatsApp
FAQ
What is 12kV Ring Network Cabinet used for?
Start with the ring-in, ring-out and transformer-feeder functions. The required protection duty determines whether each functional unit needs a switch, fuse combination or circuit breaker.
Which documents apply to 12kV Ring Network Cabinet?
Request the exact cabinet model and applicable report. A 12kV label alone does not define insulation medium, current or fault-interruption capability.
What information is needed for a 12kV Ring Network Cabinet quotation?
Functional units, Electrical duty, Protection, Cable interface. Send the available project drawings, destination, quantity and delivery requirements for technical review.
